Our Products - Fittings
Our Products - Fittings

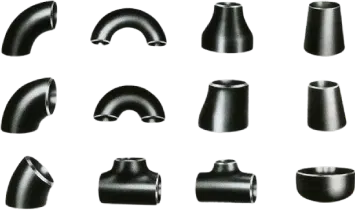

Main Categories
Elbows (90°, 45°, 180°): Change direction of flow.
Tees (Equal, Reducing): Branch connections.
Reducers (Concentric, Eccentric): Transition between different pipe sizes.
Couplings: Connect two pipes together.
Caps & Plugs: Seal pipe ends.
Crosses: Four-way connections (less common in oil & gas).
Stub Ends: Used with lap joint flanges

Manufacturing Types
Butt-Weld Fittings: Seamless or welded, beveled ends for welding.
Socket-Weld Fittings: For small-bore, high-pressure service.
Threaded Fittings: For low-pressure, non-welded connections.

Standards
ASME B16.9: Factory-made wrought steel butt-weld fittings.
ASME B16.11: Forged steel socket-weld and threaded fittings.
MSS SP-75: High-strength butt-weld fittings for pipeline systems.
API 6A: Wellhead fittings

Material Grades
Carbon Steel: ASTM A234 WPB (butt-weld), ASTM A105 (forged).
Low-Temperature Carbon Steel: ASTM A420 WPL6.
Stainless Steel: ASTM A403 WP304/316.
Alloy Steel: ASTM A234 WP11, WP22, WP91.
Duplex/Super Duplex: UNS S31803, S32750.
