GASKET

Gaskets

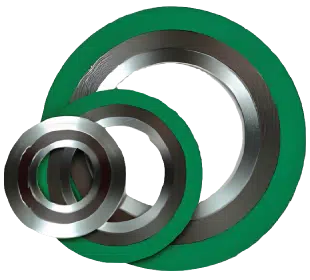

Spiral Wound Gasket with Inner Ring and Outer Ring, manufactured in accordance with ASME B16.20 and suitable for flanges per ASME B16.5 and ASME B16.47

Size
1/2" to 36"

Rating
ASME Class 150, 300, 600, 900, 1500, 2500

Materials
Metal Winding: SS304, SS316 / SS316L, SS321, Monel, Inconel
Filler Material: Flexible Graphite, PTFE
Inner Ring: CS, SS304, SS316
Outer Ring: Carbon Steel (Zinc Coated / Painted), SS304, SS316
