VALVES
Product Type
Ball Valve, Gate Valve, Globe Valve, Check Valve, Butterfly Valve, Slab Gate Valve, Pigging valve, Cryogenic Valve, API6A Valve, Wellhead Equipment, Manifold & Christmas tree, etc.
Standard
ISO, API, BS
Casting Material
WCB, LCB, WC6, WC9, C5, C12, CF3, CF3M, CF8, CF8M, C95500, 4A, 5A, Monel 400/500, Inconel 825/625, Titanium Alloy, etc.
Application
Onshore oil and gas exploitation and transportation, offshore oil and gas platform and FPSO / FLNG / FSRU, natural gas purification and liquefaction unit, LNG receiving station and vaporization unit, refining, chemical industry and chemistry, coal to gas (oil) and coal chemical industry, air separation, power station, aerospace, military industry and new energy (solar power generation, hydrogen energy, etc.) etc.
GLOBE VALVE
Type
Bellow Seals Globe Valve, Pressure Seal Globe Valve, Cryogenic Globe Valve
Nominal Diameters
NPS 2"-24"
Pressure
Class 150-Class 2,500
Temperature
-196°C 550°C
Materials
Carbon Steel, Stainless Steel, Duplex, Inconel, Monel, Bronze, Titanium Alloy
Standard
BS 1873, ASME B16.34, API623
Face to Face
ASME B16.10
End Connection
ASME B16.5, ASME B16.25
Test Standard
ISO 5208, API 598
Operators
Manual, Electric Actuator, Pneumatic Actuator
GATE VALVE
Type
Wedge Gate Valve, Single Disc Gate Valve, Double Disc Gate Valve(Expanded Gate Vatve), Pressure Seal Gate Valve, Cryogenic Gate Valve, Bellow Seals Gate Valve
Size
NPS 1/2" - 68"
Pressure
Class 150-Class 2,500
Temperature
-196°C 550°C
Materials
Carbon Steel, Stainless Steel, Duplex, lnconel, Monel, Bronze, Titanium Alloy Standard: API 600, API 6D, BS 1414, ASME B16.34,
Face to Face
ASME B16.10, API 6D
End Connection
ASME B16.5, ASME B16.47, ASME B16.2S, ASME B16.11
Test Standard
ISO 5208, API 6D, API 598
Operators
Manual, Worm Gear, Electric Actuator, Pneumatic Actuator

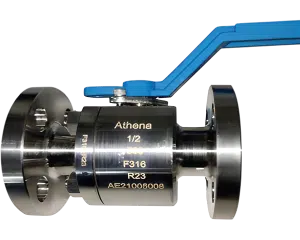

BALL VALVE
Type
Top Entry Ball Valve, Side Entry Ball Valve, Trunnion Mounted Ball Valve, Floating Ball Valve, One Piece Ball Valve, Two Pieces Ball Valve, Three Pieces Ball Valve, Fully Welded Ball Valve, Cryogenic Ball Valve, Metal Sealing Ball Valve.
Size
NPS 1/2" - 56"
Pressure
Class 150 Class 2,500
Temperature
-196°C-550°C
Materials
Carbon Steel, Stainless Steel, Duplex, lnconel, Monel, Bronze, Titanium Alloy
Standard
API 6D, BS 5351, ASME B16.34, ISO17292
Face to Face
ASME B16.10, API 6D
End Connection
ASME B16.5, ASME B16.47, ASME B16.25, ASME B16.11
Test Standard
ISO 5208, API 6D, API 598
Operators
Manual, Worm Gear, Electric Actuator, Pneumatic Actuator
BUTTERFLY VALVES
Type
Double Eccentric Butterfly Valve, Triple Eccentric Butterfly Valve, Metal Seal Butterfly Valve, Non-metal Sealing, Butterfly Valve, Cryogenic Butterfly Valve
Nominal Diameters
NPS 2" 120"
Pressure
Class 150 Class 1500
Temperature
-196°C 550°C
Materials
Carbon Steel, Low Temp, Carbon Steel, Stainless Steel, Duplex, lnconel, Monel, Bronze, Titanium Alloy
Standard
API 609, MSS SP-68, EN 593
Face to Face
API 609, MSS SP-68, EN 558
End Connection
ASME B16.5, EN 1092, ASME B16.47
Test Standard
ISO 5208, API 598
Operators
Manual, Worm Gear, Electric Actuator, Pneumatic Actuator
CHECK VALVE
Type
Swing Check Valve, Wafer Check Valve, Axial Flow Check Valve, Pressure Seal Check Valve, Cryogenic Check Valve
Nominal Diameters
NPS 2" - 48"
Pressure
Class 150Class 2,500
Temperature
-196°C-550°C
Materials
Carbon Steel, Stainless Steel, Duplex, lnconel, Monel, Bronze, Titanium Alloy
Standard
API6D, BS 1868, ASME B16.34
Face to Face
ASME B16.10, API 6D, API 594
End Connection
ASME B16.5, ASME B16.25, ASME B16.47
Test Standard
ISO 5208, API 6D, API 598
